WEDGE CLAMP - TWC-M Series - Machinable Jaws

These have extra material on jaws(soft) to machine as per the workpiece shape enabling fixturing of uneven or unusual shape workpieces.

2D / 3D CAD Files Available on Request.

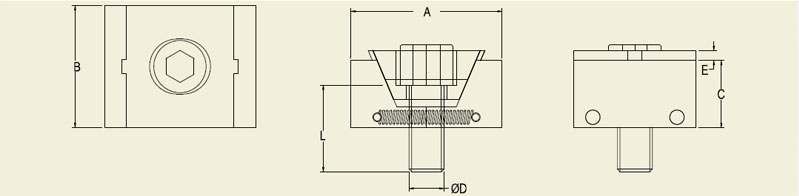

MODEL	A			B	C	ØD X L	E	Tightening Torque Nm MAx.*	Clamping Force Max.	N. W. Kgs. (Including Clamping bolt)
MODEL	min.	optimum	max.	B	C	ØD X L	E	Tightening Torque Nm MAx.*	Clamping Force Max.	N. W. Kgs. (Including Clamping bolt)
TWC-8M	33	35 ~ 36	38	31	16	M8 X 20	2	40	2500 Kgs.	0.12
TWC-12M	52	55 ~ 56	59	42	23	M12 X 30	3.5	140	5000 Kgs.	0.34
TWC-16M	67	71 ~ 73	76	58	30	M16 X 35	4	350	10000 Kgs.	0.86

* Exceeding the maximum torque damages the damp parts and warranty expires.
