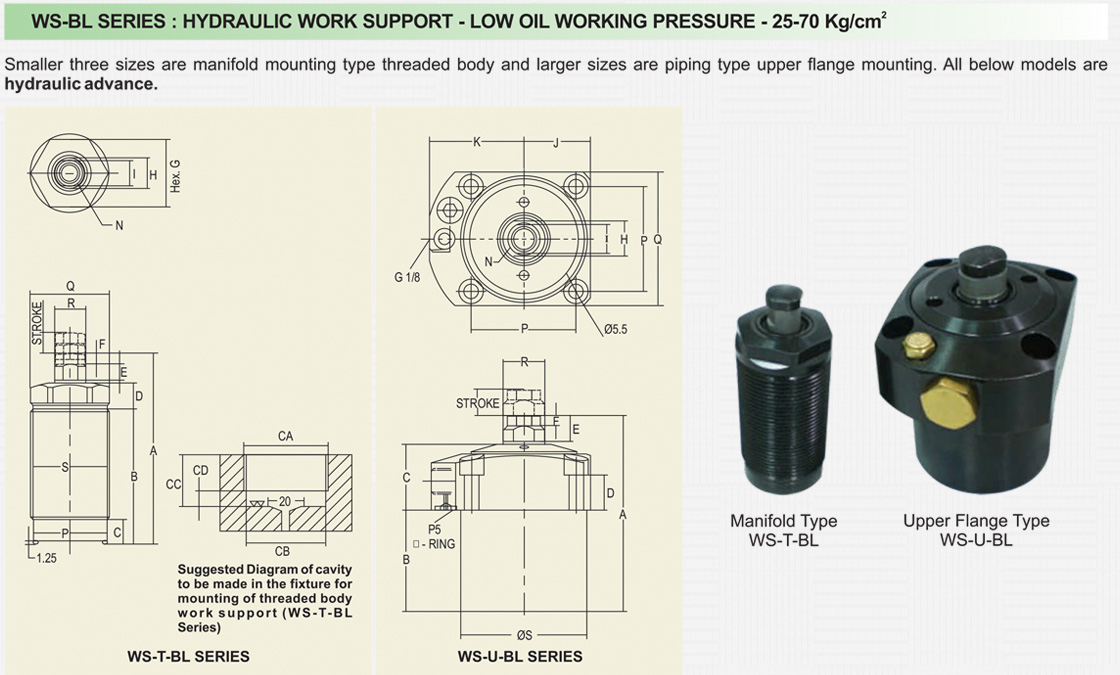

WS-BL SERIES : HYDRAULIC WORK SUPPORT - LOW OIL WORKING PRESSURE - 25-70 Kg/cm2

Smaller three sizes are manifold mounting type threaded body and larger sizes are piping type upper flange mounting. All below models are hydraulic advance.



2D / 3D CAD Files Available on Request For All Models

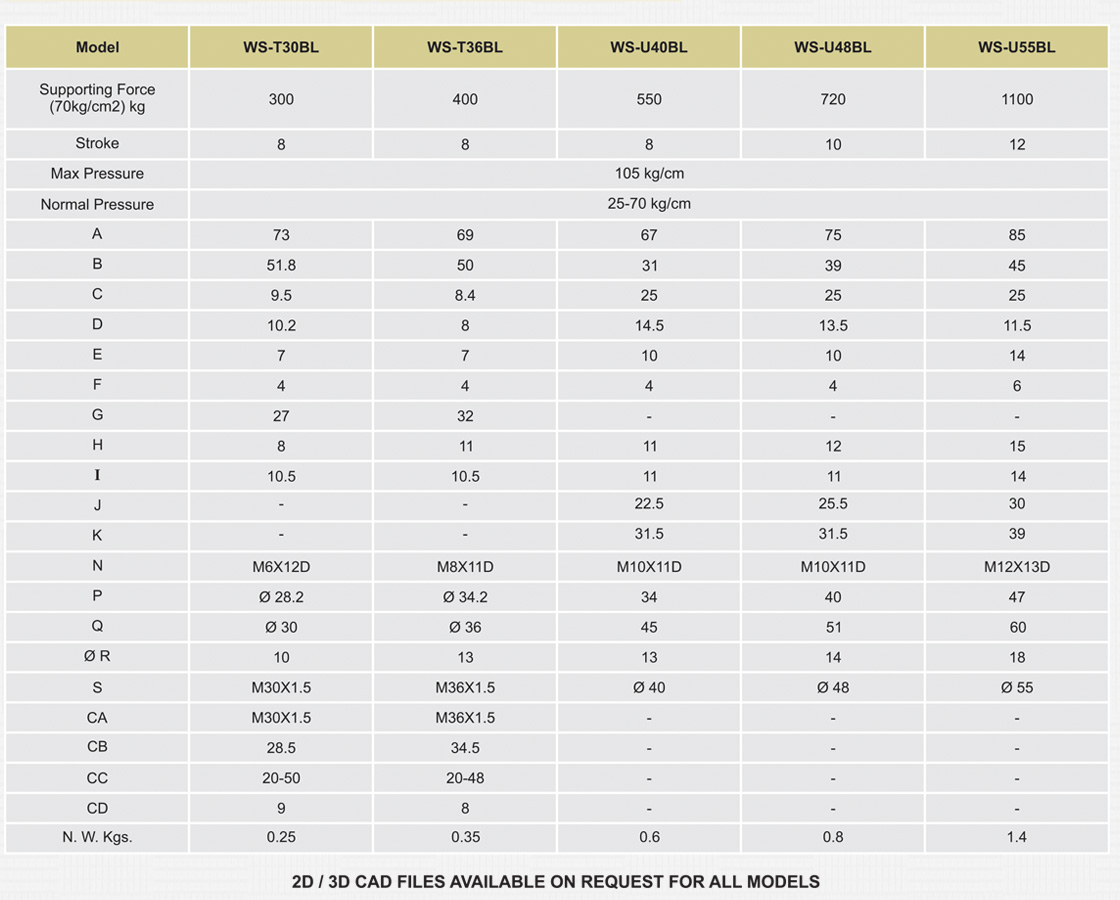

MODEL WS-T30BL WS-T36BL WS-U40BL WS-U48BL WS-U55BL
Supporting Force
(70kg/cm2) kg
300 400 550 720 1100
Stroke 8 8 8 10 12
Max Pressure     105 kg/cm
Normal Pressure     25-70 kg/cm
A 73 69 67 75 85
B 51.8 50 31 39 45
C 9.5 8.4 25 25 25
D 10.2 8 14.5 13.5 11.5
E 7 7 10 10 14
F 4 4 4 4 6
G 27 32 - - -
H 8 11 11 12 15
I 10.5 10.5 11 11 14
J - - 22.5 25.5 30
K - - 31.5 31.5 39
N M6X12D M8X11D M10X11D M10X11D M12X13D
P Ø 28.2 Ø34.2 34 40 47
Q Ø 30 Ø 36 45 51 60
Ø R 10 13 13 14 18
S M30X1.5 M36X1.5 Ø 40 Ø 48 Ø55
CA M30X1.5 M36X1.5 - - -
CB 28.5 34.5 - - -
CC 20-50 20-48 - - -
CD 9 8 - - -
N. W. Kgs. 0.25 0.35 0.6 0.8 1.4
