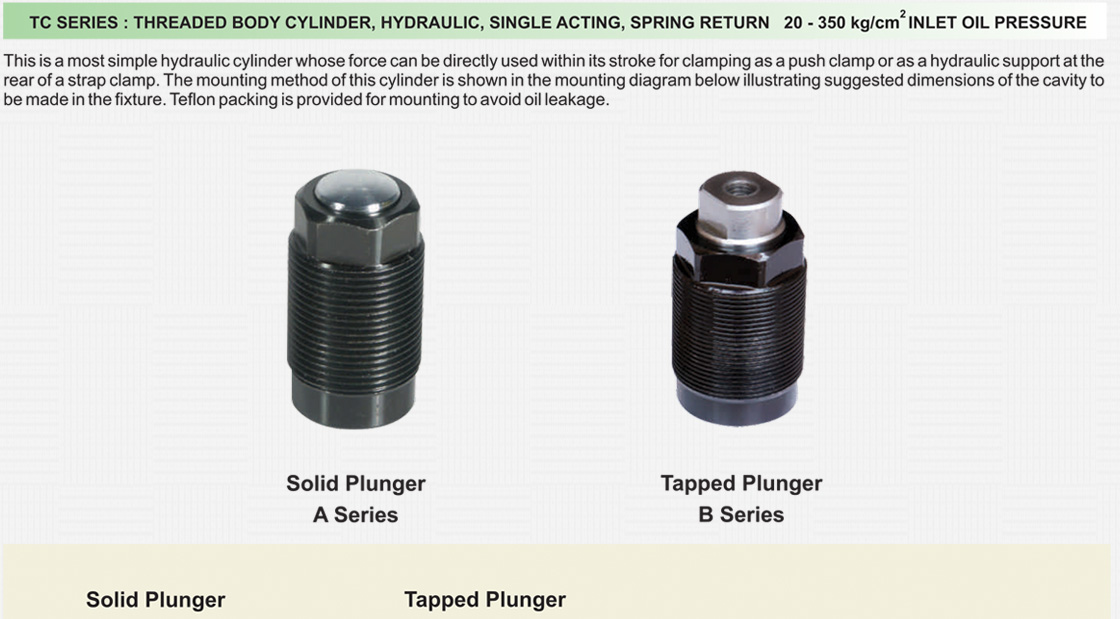

TC SERIES : THREADED BODY CYLINDER, HYDRAULIC, SINGLE ACTING, SPRING RETURN 20 - 350 kg/cm2INLET OIL PRESSURE

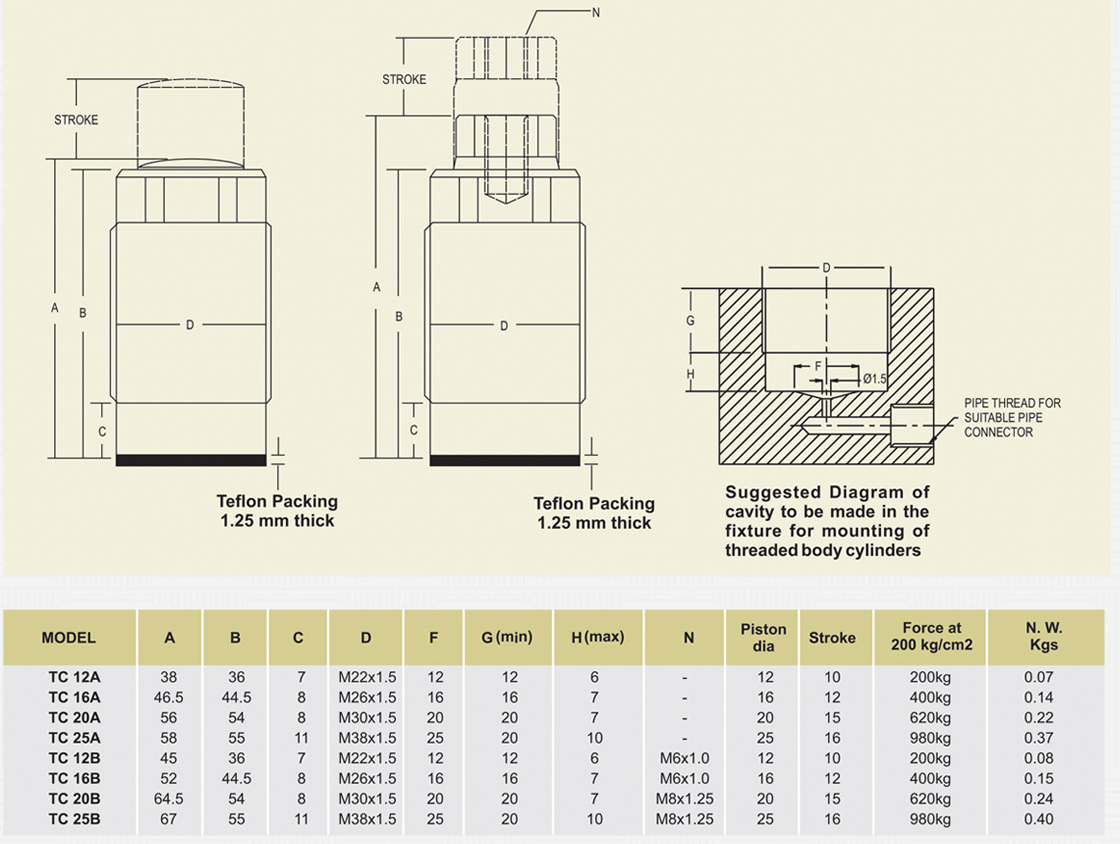

This is a most simple hydraulic cylinder whose force can be directly used within its stroke for clamping as a push clamp or as a hydraulic support at the rear of a strap clamp. The mounting method of this cylinder is shown in the mounting diagram below illustrating suggested dimensions of the cavity to be made in the fixture. Teflon packing is provided for mounting to avoid oil leakage.



2D / 3D CAD Files Available on Request For All Models

MODEL A B C D F G (min) H (max) N Piston
dia
Stroke Force at
200 kg/cm2
N. W.
Kgs
TC 12A 38 36 7 M22x1.5 12 12 6 - 12 10 200kg 0.07
TC 16A 46.5 44.5 8 M26x1.5 16 16 7 - 16 12 400kg 0.14
TC 20A 56 54 8 M30x1.5 20 20 7 - 20 15 620kg 0.22
TC 25A 58 55 11 M38x1.5 25 20 10 - 25 16 980kg 0.37
TC 12B 45 36 7 M22x1.5 12 12 6 M6x1.0 12 10 200kg 0.08
TC 16B 52 44.5 8 M26x1.5

16

16 7 M6x1.0 16 12 400kg 0.15
TC 20B 64.5 54 8 M30x1.5 20 20 7 M8x1.25 20 15 620kg 0.24
TC 25B 67 55 11 M38x1.5 25 20 10 M8x1.25 25 16 980kg 0.40
