based on IS : 4292

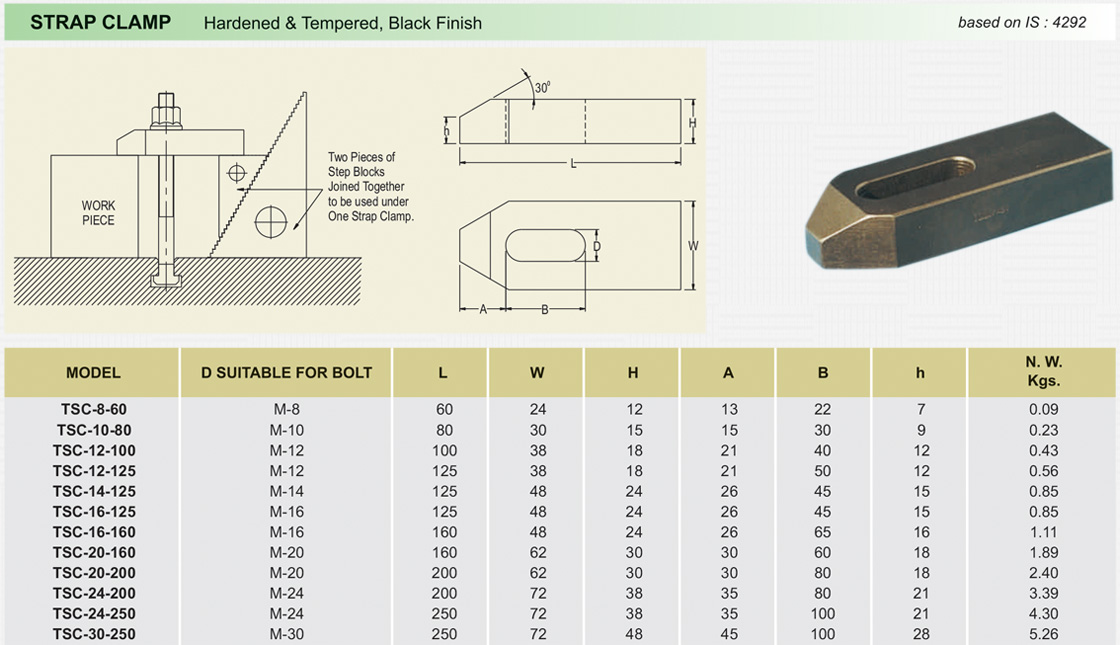

STRAP CLAMP

Hardened & Tempered, Black Finish

MODEL D SUITABLE FOR BOLT L w h A B h N. W. Kgs.
TSC-8-60 M-8 60 24 12 13 22 7 0.09
TSC-10-80 M-10 80 30 15 15 30 9 0.23
TSC-12-100 M-12 100 38 18 21 40 12 0.43
TSC-12-125 M-12 125 38 18 21 50 12 0.56
TSC-14-125 M-14 125 48 24 26 45 15 0.85
TSC-16-125 M-16 125 48 24 26 45 15 0.85
TSC-16-160 M-16 160 48 24 26 65 15 1.11
TSC-20-160 M-20 160 62 30 30 60 18 1.89
TSC-24-200 M-24 200 72 38 35 80 21 3.39
TSC-30-250 M-30 250 72 48 45 100 28 5.26
