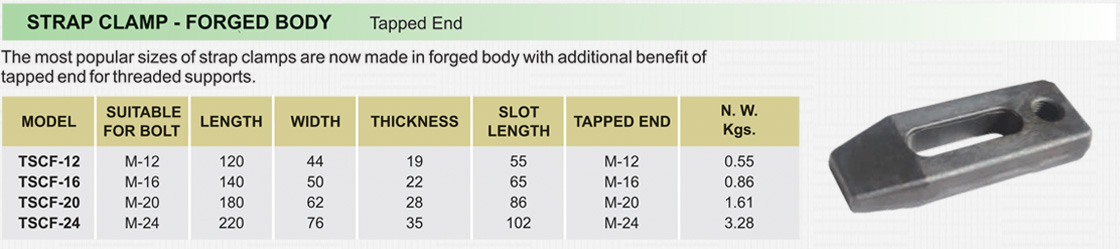

STRAP CLAMP - FORGED BODY

Hardened & Tempered, Tapped End

The most popular sizes of strap clamps are now made in forged body with additional benefit of tapped end for threaded supports.

Model SUITABLE
FOR BOLT
LENGTH WIDTH THICKNESS SLOT
LENGTH
TAPPED END N. W.
Kgs.
TSCF-12 M-12 120 44 19 55 M-12 0.55
TSCF-16 M-16 140 50 22 55 M-16 0.86
TSCF-20 M-20 180 62 28 86 M-20 1.61
TSCF-24 M-24 220 76 35 102 M-24 3.28
