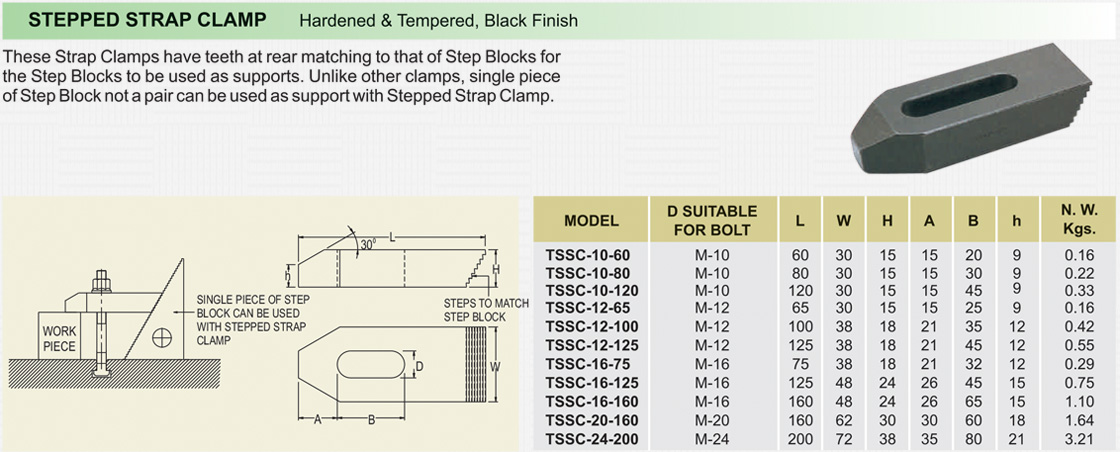

STEPPED STRAP CLAMP

Hardened & Tempered, Black Finish

These Strap Clamps have teeth at rear matching to that of Step Blocks for the Step Blocks to be used as supports. Unlike other clamps, single piece of Step Block not a pair can be used as support with Stepped Strap Clamp.


Model D SUITABLE FOR BOLT L W H A B h N. W.
Kgs.
TSSC-10-60 M-10 60 30 15 15 20 9 0.16
TSSC-10-80 M-10 80 30 15 15 30 9 0.22
TSSC-10-120 M-10 120 30 15 15 45 9 0.33
TSSC-12-65 M-12 65 30 15 15 25 9 0.16
TSSC-12-100 M-12 100 38 18 21 35 12 0.42
TSSC-12-125 M-12 125 38 18 21 45 12 0.55
TSSC-16-75 M-16 75 38 18 21 32 12 0.29
TSSC-16-125 M-16 125 48 24 26 45 15 0.75
TSSC-16-160 M-16 160 48 24 26 65 15 1.10
TSSC-20-160 M-20 160 62 30 30 60 18 1.64
TSSC-24-200 M-24 200 72 38 35 80 21 3.21
