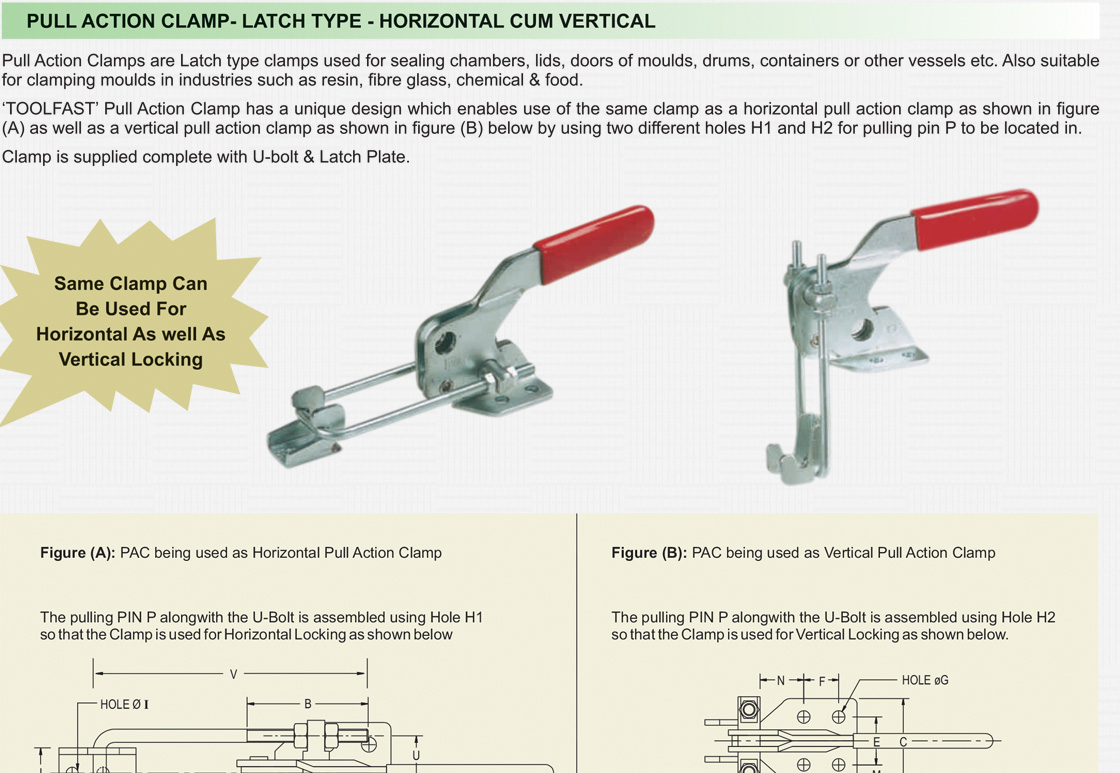

PULL ACTION CLAMP- LATCH TYPE - HORIZONTAL CUM VERTICAL

Pull Action Clamps are Latch type clamps used for sealing chambers, lids, doors of moulds, drums, containers or other vessels etc. Also suitable for clamping moulds in industries such as resin, fibre glass, chemical & food.

'TOOLFAST' Pull Action Clamp has a unique design which enables use of the same clamp as a horizontal pull action clamp as shown in figure (A) as well as a vertical pull action clamp as shown in figure (B) below by using two different holes H1 and H2 for pulling pin P to be located in. Clamp is supplied complete with U-bolt & Latch Plate.



2D / 3D CAD FILES AVAILABLE FOR ALL TOGGLE CLAMP MODELS ON REQUEST.

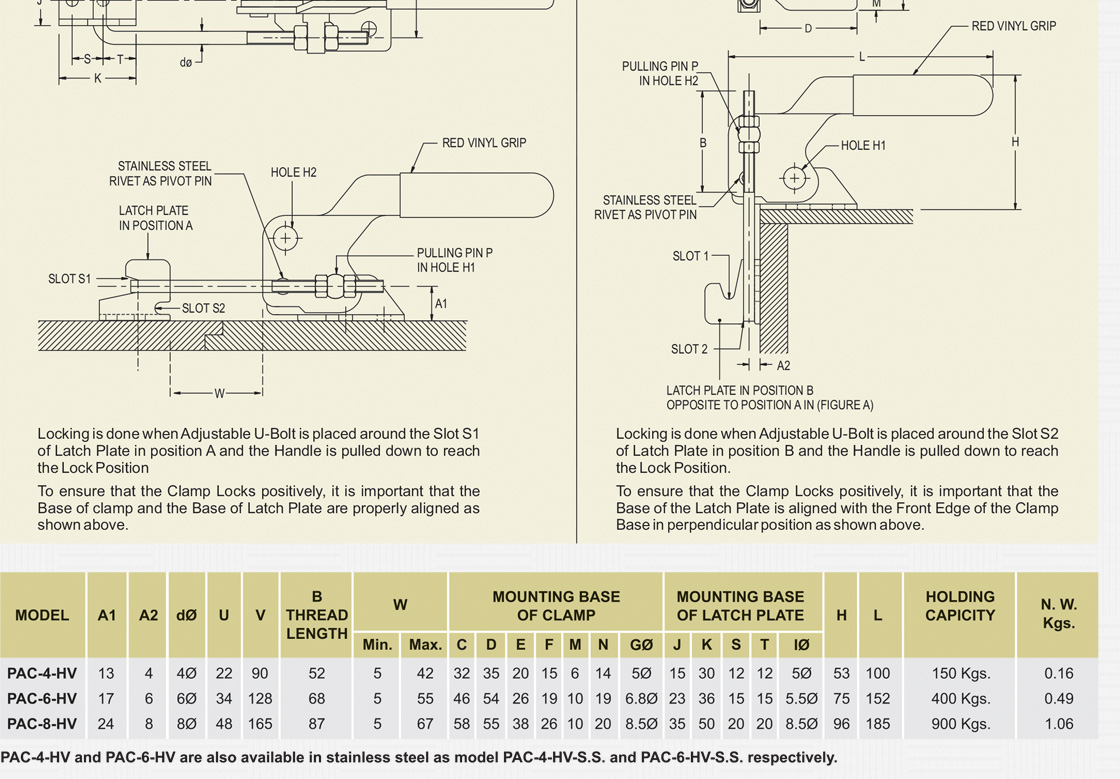

MODEL A1 a2 dØ U v B
THREAD
LENGTH
W MOUNTING BASE OF CLAMP MOUNTING BASE OF LATCH PLATE H L HOLDING
CAPICITY
N. W.
Kgs.
Min. Max. C D E F M N J K S T
PAC-4-Hv 13 4 22 90 52 5 42 32 35 20 15 6 14 15 30 12 12 53 100 150 Kgs. 0.16
PAC-6-Hv 17 6 34 128 68 5 55 46 54 26 19 10 19 6.8Ø 23 36 15 15 5.5Ø 75 152 400 Kgs. 0.49
PAC-8-Hv 24 8 48 165 87 5 66 58 55 38 26 10 20 8.5Ø 35 50 20 20 8.5Ø 96 185 900 Kgs. 1.06

PAC-4-HV and PAC-6-HV are also available in stainless steel as model PAC-4-HV-S.S. and PAC-6-HV-S.S. respectively.
