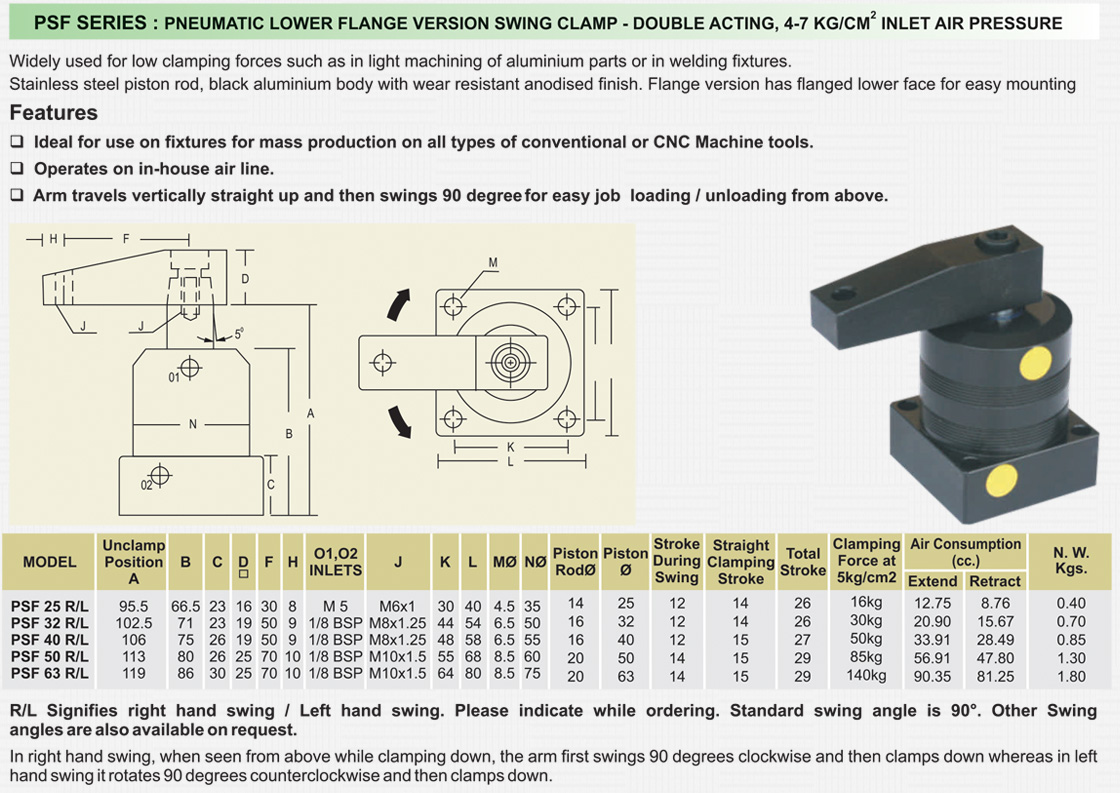

PSF SERIES : PNEUMATIC LOWER FLANGE VERSION SWING CLAMP - DOUBLE ACTING, 4-7 KG/CM2 INLET AIR PRESSURE

Widely used for low clamping forces such as in light machining of aluminium parts or in welding fixtures.
Stainless steel piston rod, black aluminium body with wear resistant anodised finish. Flange version has flanged lower face for easy mounting
Features
>>Ideal for use on fixtures for mass production on all types of conventional or CNC Machine tools.
>>Operates on in-house air line.
>>Arm travels vertically straight up and then swings 90 degree for easy job loading / unloading from above.



R/L Signifies right hand swing / Left hand swing. Please indicate while ordering. Standard swing angle is 90°. Other Swing angles are also available on request.
In right hand swing, when seen from above while clamping down, the arm first swings 90 degrees clockwise and then clamps down whereas in left hand swing it rotates 90 degrees counterclockwise and then clamps down.

2D / 3D CAD Files Available on Request For All Models

MODEL Unclamp
Position
A
B C D F H O1,O2
INLETS
J K L Piston
RodØ
Piston
Ø
Stroke During
Swing
Straight
Clamping
Stroke
Total
Stroke
Clamping
Force at
5kg/cm2
Air Consumption
(cc.)
N. W.
Kgs.
Extend Retract
PSF 25 R/L 95.5 66.5 23 16 30 8 M 5 M6x1 30 40 4.5 35 14 25 12 14 26 16kg 12.75 8.76 0.40
PSF 32 R/L 102.5 71 23 19 50 9 1/8 BSP M8x1.25 44 54 6.5 50 16 32 12 14 26 30kg 20.90 15.67 0.70
PSF 40 R/L 106 75 26 19 50 9 1/8 BSP M8x1.25 48 58 6.5 55 16 40 12 15 27 50kg 33.91 28.49 0.85
PSF 50 R/L 113 80 26 25 70 10 1/8 BSP M10x1.5 55 68 8.5 60 20 50 14 15 29 85kg 56.91 47.80 1.30
PSF 63 R/L 119 86 30 25 70 10 1/8 BSP M10x1.5 64 80 8.5 75 20 63 14 15 29 140kg 90.35 81.25 1.80
