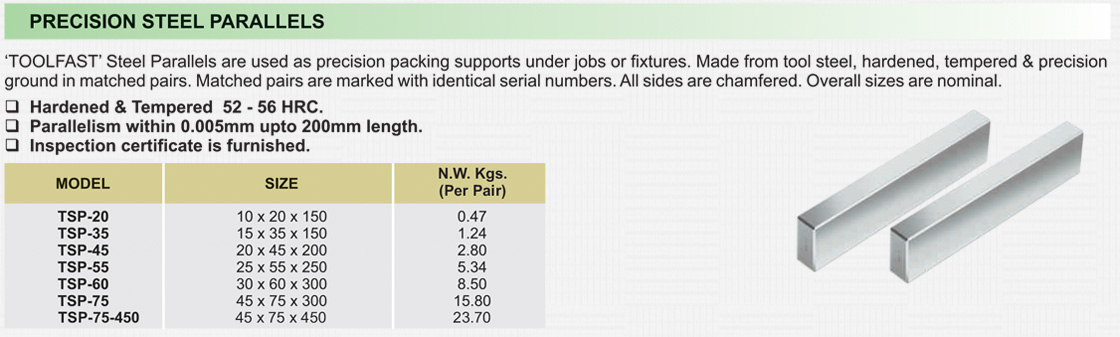

PRECISION STEEL PARALLELS

'TOOLFAST' Steel Parallels are used as precision packing supports under jobs or fixtures. Made from tool steel, hardened, tempered & precision ground in matched pairs. Matched pairs are marked with identical serial numbers. All sides are chamfered. Overall sizes are nominal.

>> Hardened & Tempered 52 - 56 HRC.
>> Parallelism within 0.005mm upto 200mm length.
>> Inspection certificate is furnished.

MODEL SIZE N. W.
Kgs.
TSP-20 10 x 20 x 150 0.47
TSP-35 15 x 35 x 150 1.24
TSP-45 20 x 45 x 200 2.80
TSP-55 25 x 55 x 250 5.34
TSP-60 30 x 60 x 300 8.50
TSP-75 45 x 75 x 300 15.80
