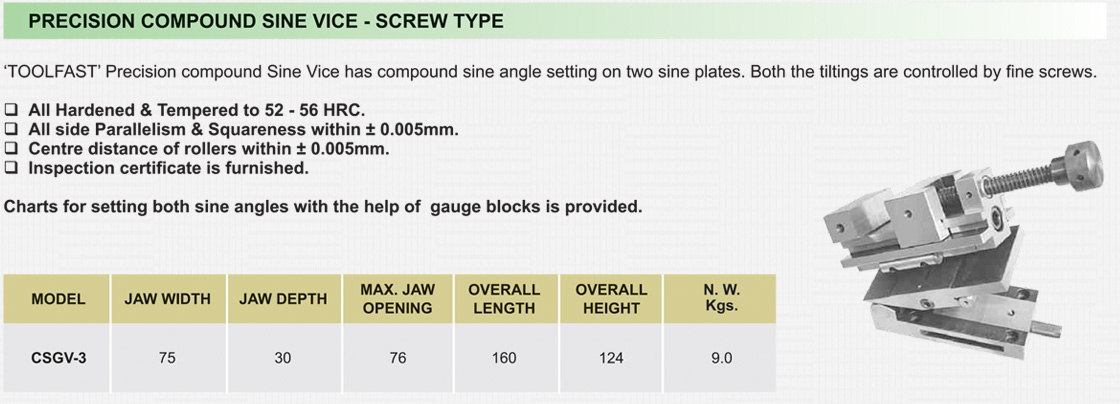

precision compound sine vice - screw type

'TOOLFAST' Precision compound Sine Vice has compound sine angle setting on two sine plates. Both the tiltings are controlled by fine screws.

>> All Hardened & Tempered to 52 - 56 HRC.
>> All side Parallelism & Squareness within ± 0.005mm.
>> Centre distance of rollers within ± 0.005mm.
>> Inspection certificate is furnished.

Chart for setting sine angles with the help of gauge blocks is provided.

MODEL JAW WIDTH JAW DEPTH MAX. JAW OPENING OVERALL LENGTH OVERALL HEIGHT N. W.
Kgs.
CSGV-3 75 30 76 160 124 9.0
