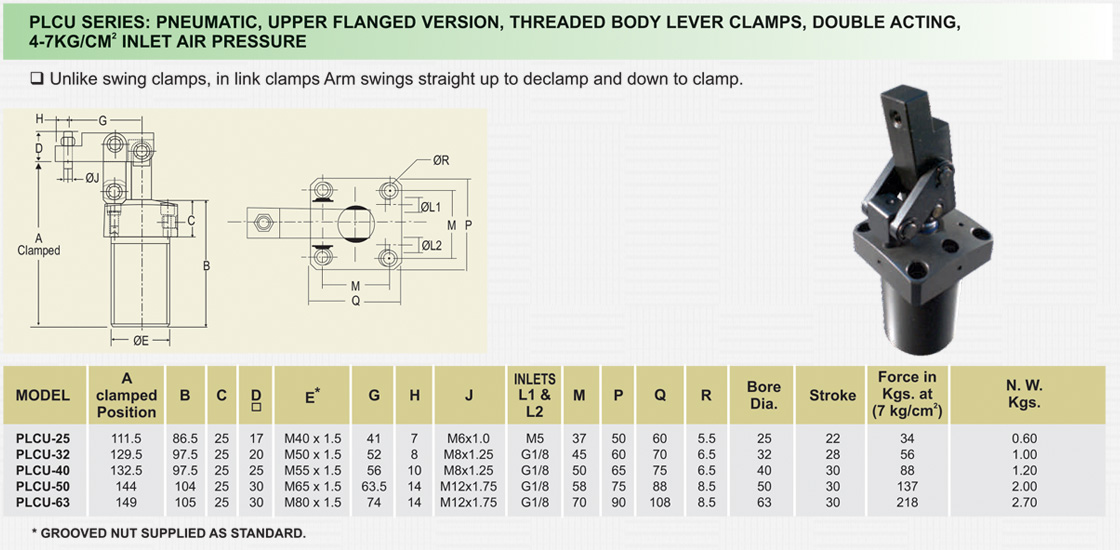

PLCU SERIES: PNEUMATIC, UPPER FLANGED VERSION, THREADED BODY LEVER CLAMPS, DOUBLE ACTING, 4-7KG/CM2 INLET AIR PRESSURE

>>Unlike swing clamps, in link clamps Arm swings straight up to declamp and down to clamp.



2D / 3D CAD Files Available on Request For All Models


MODEL A
clamped
Position
B C D
E* G. H J INLETS L1&
L2
M P Q R Bore
Dia.
Stroke Force in
Kgs. at
(7 kg/cm2)
N. W.
Kgs.
PLCU-25
PLCU-32
PLCU-40
PLCU-50
PLCU-63
111.5
129.5
132.5
144
149
86.5
97.5
97.5
104
105
25
25
25
25
25
17
20
25
30
30
M40 x 1.5
M50 x 1.5
M55 x 1.5
M65 x 1.5
M80 x 1.5
41
52
56
63.5
74
7
8
10
14
14
M6x1.0
M8x1.25
M8x1.25
M12x1.75
M12x1.75
M5
G1/8
G1/8
G1/8
G1/8
37
45
50
58
70
50
60
65
75
90
60
70
75
88
108
5.5
6.5
6.5
8.5
8.5
25
32
40
50
63
22
28
30
30
30
34
56
88
137
218
0.60
1.00
1.20
2.00
2.70
