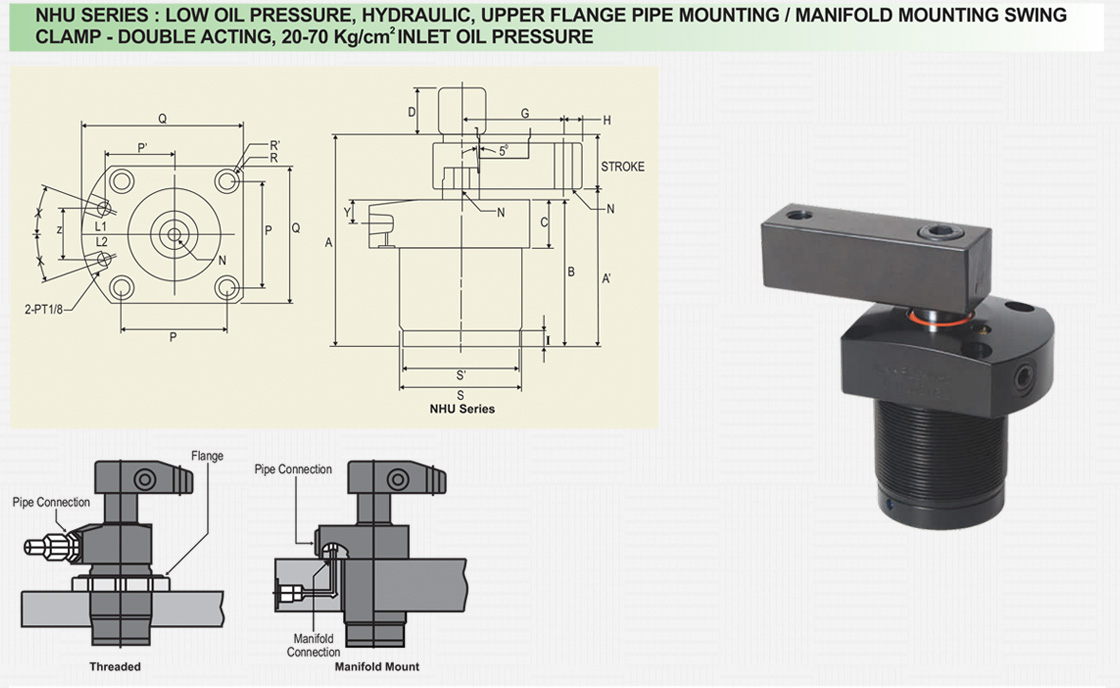

NHU SERIES : LOW OIL PRESSURE, HYDRAULIC, UPPER FLANGE PIPE MOUNTING / MANIFOLD MOUNTING SWING CLAMP - DOUBLE ACTING, 20-70 Kg/cm2 INLET OIL PRESSURE



2D / 3D CAD Files Available on Request For All Models

  NHU-32
R/L
NHU-40
R/L
NHU-50
R/L
NHU-63 R/L

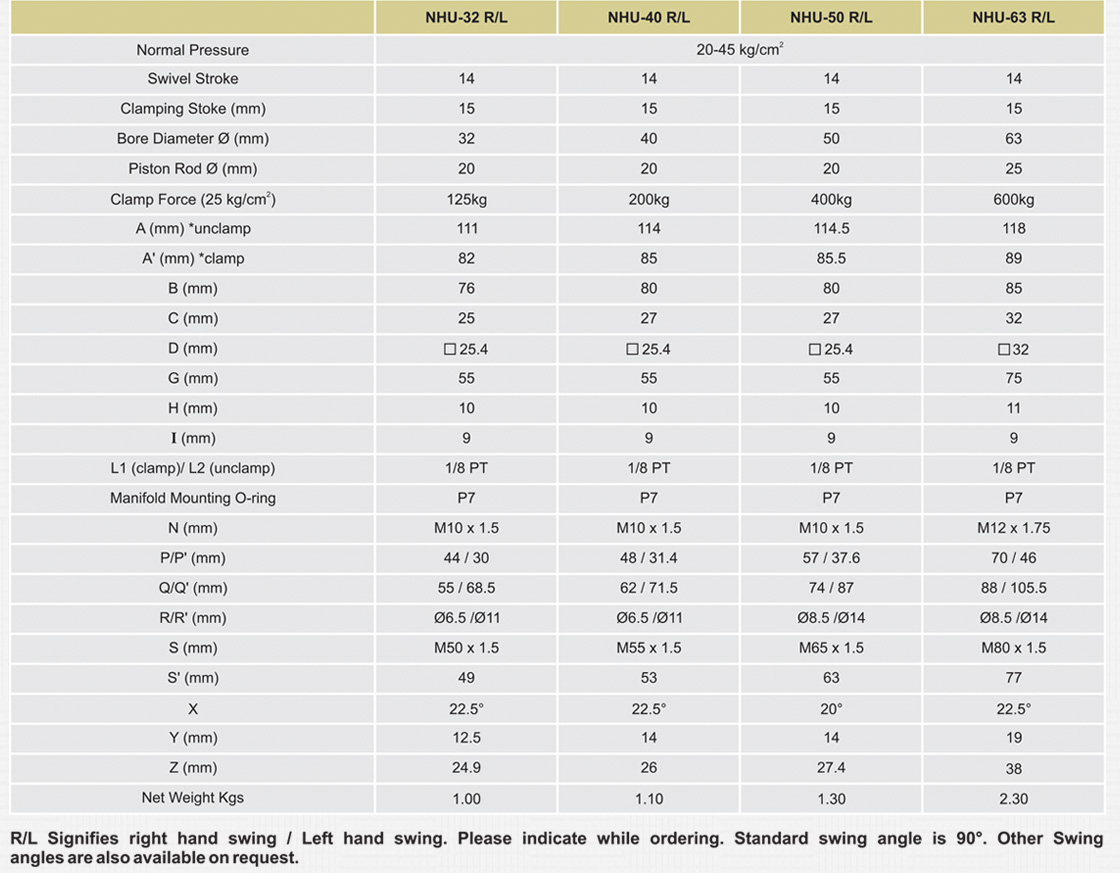

Normal Pressure 20-45 kg/cm2
Swivel Stroke 14 14 14 14
Clamping Stoke (mm) 15 15 15 15
Bore Diameter Ø (mm) 32 40 50 63
Piston Rod Ø (mm) 20 20 20 25
Clamp Force (25 kg/cm2) 125kg 200kg 400kg 600kg
A (mm) *unclamp 111 114 114.5 118
A' (mm) *clamp 82 85 85.5 89
B (mm) 76 80 80 85
C (mm) 25 27 27 32
D (mm) 25.4 25.4 25.4 32
G (mm) 55 55 55 75
H (mm) 10 10 10 11
I (mm) 9 9 9 9
L1 (clamp)/ L2 (unclamp) 1/8 PT 1/8 PT 1/8 PT 1/8 PT
Manifold Mounting O-ring P7 P7 P7 P7
N (mm) M10 x 1.5 M10 x 1.5 M10 x 1.5 M12 x 1.75
P/P' (mm) 44 / 30 48 / 31.4 57 / 37.6 70 / 46
Q/Q' (mm) 55 / 68.5 62 / 71.5 74 / 87 88 / 105.5
R/R' (mm) Ø6.5 /Ø11 Ø6.5 /Ø11 Ø8.5 /Ø14 Ø8.5 /Ø14
S (mm) M50 x 1.5 M55 x 1.5 M65 x 1.5 M80 x 1.5
S' (mm) 49 53 63 77
X 22.5° 22.5° 20° 22.5°
Y (mm) 12.5 14 14 19
Z (mm) 24.9 26 27.4 38
Net Weight Kgs 1.00 1.10 1.30 2.30
