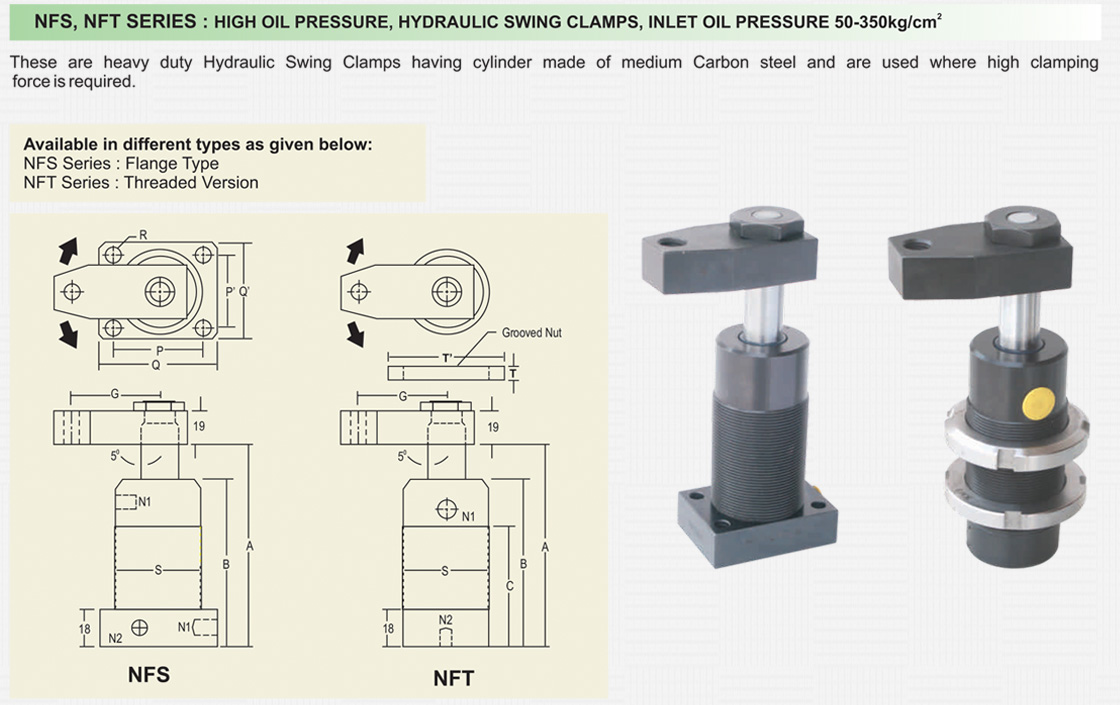

NFS, NFT SERIES : HIGH OIL PRESSURE, HYDRAULIC SWING CLAMPS, INLET OIL PRESSURE 50-350kg/cm2

These are heavy duty Hydraulic Swing Clamps having cylinder made of medium Carbon steel and are used where high clamping force is required.



Please indicate while ordering whether required Right Hand Swing or Left Hand Swing(R/L). Standard swing angle is 90°. Other swing angles (60°, 45°, 0°) are also available on request. 2 nos. grooved nuts are supplied as standard accessory with NFT series.

In right hand swing, when seen from above while clamping down, the arm first swings 90 degrees clockwise and then clamps down whereas in left hand swing it rotates 90 degrees counterclockwise and then clamps down.

2D / 3D CAD Files Available on Request For All Models

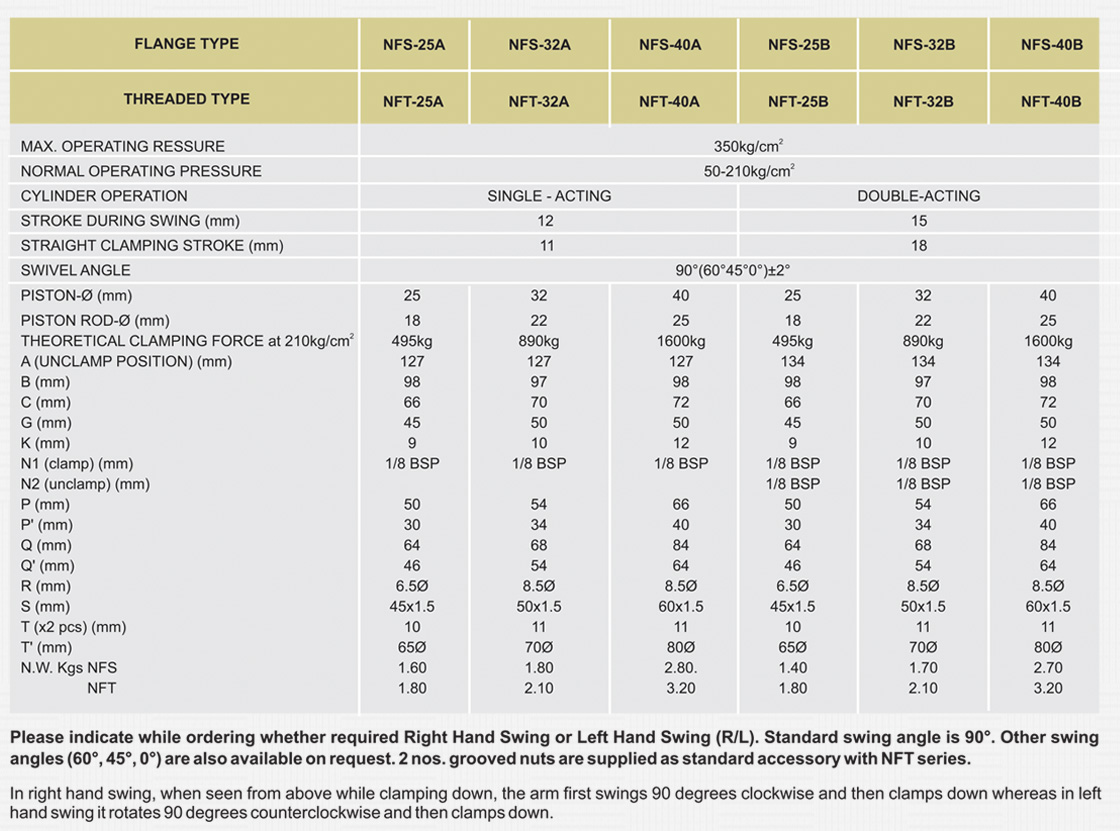

FLANGE TYPE NFS-25A NFS-32A NFS-40A NFS-25B NFS-32B NFS-40B
THREADED TYPE NFT-25A NFT-32A NFT-40A NFT-25B NFT-32B NFT-40B
MAX. OPERATING RESSURE 350kg/cm2
NORMAL OPERATING PRESSURE 50-210kg/cm2
CYLINDER OPERATION SINGLE - ACTING   DOUBLE-ACTING
STROKE DURING SWING (mm) 12   15
STRAIGHT CLAMPING STROKE (mm) 11   18
SWIVEL ANGLE 90°(60°45°0°)±2°
PISTON-Ø (mm) 25 32 42 25 32 40
PISTON ROD-Ø (mm) 18 22 25 18 22 25
THEORETICAL CLAMPING FORCE at 210kg/cm2 495kg 890kg 1600kg 495kg 890kg 1600kg
A (UNCLAMP POSITION) (mm) 127 127 127 134 134 134
B (mm) 98 97 98 98 97 98
C (mm) 66 70 72 66 70 72
G (mm) 45 50 50 45 50 50
K (mm) 9 10 12 9 10 12
N1 (clamp) (mm) 1/8 BSP 1/8 BSP 1/8 BSP 1/8 BSP 1/8 BSP 1/8 BSP
N2 (unclamp) (mm)       1/8 BSP 1/8 BSP 1/8 BSP
P (mm) 50 54 66 50 54 66
P' (mm) 30 34 40 30 34 40
Q (mm) 64 68 84 64 68 84
Q' (mm) 46 54 64 46 54 64
R (mm) 6.5Ø 8.5Ø 8.5Ø 6.5Ø 8.5Ø 8.5Ø
S (mm) 45x1.5 50x1.5 60x1.5 45x1.5 50x1.5 60x1.5
T (x2 pcs) (mm) 10 11 11 10 11 11
T' (mm) 65Ø 70Ø 80Ø 65Ø 70Ø 80Ø
N.W. Kgs NFS 1.60 1.80 2.80. 1.40 1.70 2.70
NFT 1.80 2.10 3.20 1.80 2.10 3.20
