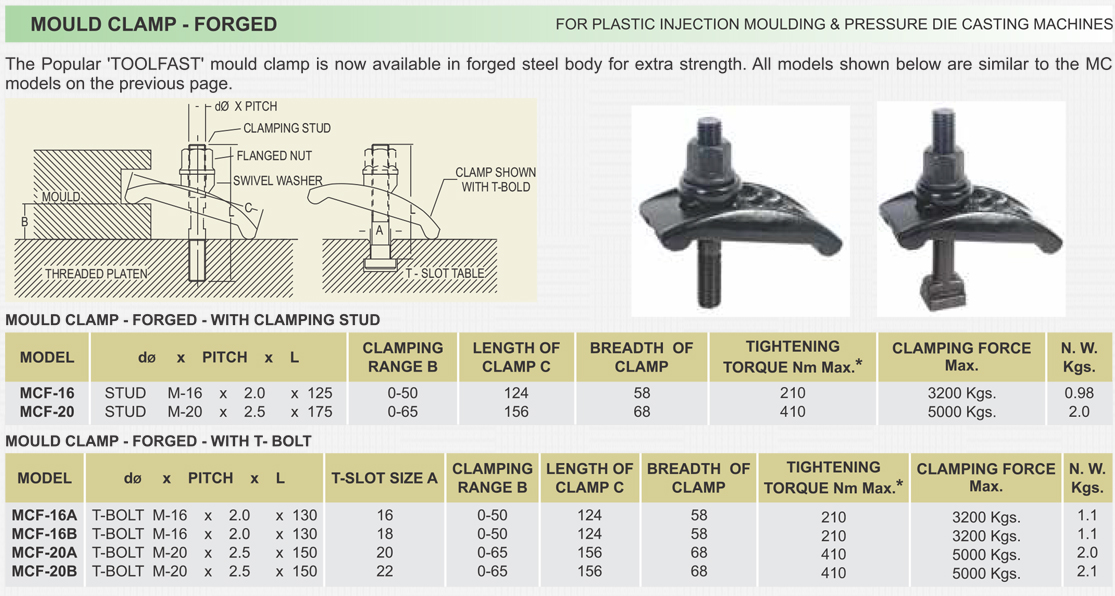

MOULD CLAMP - FORGED

FOR PLASTIC INJECTION MOULDING & PRESSURE DIE CASTING MACHINES

The Popular 'TOOLFAST' mould clamp is now available in forged steel body for exira strength. All models shown below are similar to the MC models on the previous page.


MOULD CLAMP - FORGED - WITH CLAMPING STUD
MODEL dØ x PITCH x L CLAMPING RANGE B LENGTH OF CLAMP C BREADTH OF CLAMP TIGHTENING TORQUE Nm max.* CLAMPING FORCE Max. N. W. Kgs.
MCF-12 STUD M-12 x 1.75 x 100 0-35 102 46 90 2000 Kgs. 0.50
MCF-16 STUD M-16 x 2.0 x 125 0-50 124 58 220 3200 Kgs. 0.98
MCF-20 STUD M-20 x 2.5 x 175 0-65 156 68 420 5000 Kgs. 2.0
MCF-24 STUD M-24 x 3.0 x 200 0-75 178 82 730 6000 Kgs. 3.0
MOULD CLAMP - FORGED - WITH T- BOLT
MODEL dØ x PITCH x L T-SLOT SIZE A CLAMPING RANGE B LENGTH OF CLAMP C BREADTH OF CLAMP TIGHTENING TORQUE Nm Max.* CLAMPING FORCE Max. N. W. Kgs.
MCF-12A T-BOLT M-12 x 1.75 x 100 12 0-35 102 46 90 2000 Kgs. 0.52
MCF-12B T-BOLT M-12 x 1.75 x 100 14 0-35 102 46 90 2000 Kgs. 0.54
MCF-16A T-BOLT M-16 x 2.0 x 130 16 0-50 124 58 220 3200 Kgs. 1.1
MCF-16B T-BOLT M-16 x 2.0 x 130 18 0-50 124 58 220 3200 Kgs. 1.1
MCF-20A T-BOLT M-20 x 2.5 x 150 20 0-65 156 68 420 5000 Kgs. 2.0
MCF-20B T-BOLT M-20 x 2.5 x 150 22 0-65 156 68 420 5000 Kgs. 2.1
MCF-24A T-BOLT M-24 x 3.0 x 210 24 0-75 178 82 430 6000 Kgs. 3.24
MCF-24B T-BOLT M-24 x 3.0 x 210 28 0-75 178 82 730 6000 Kgs. 3.34
