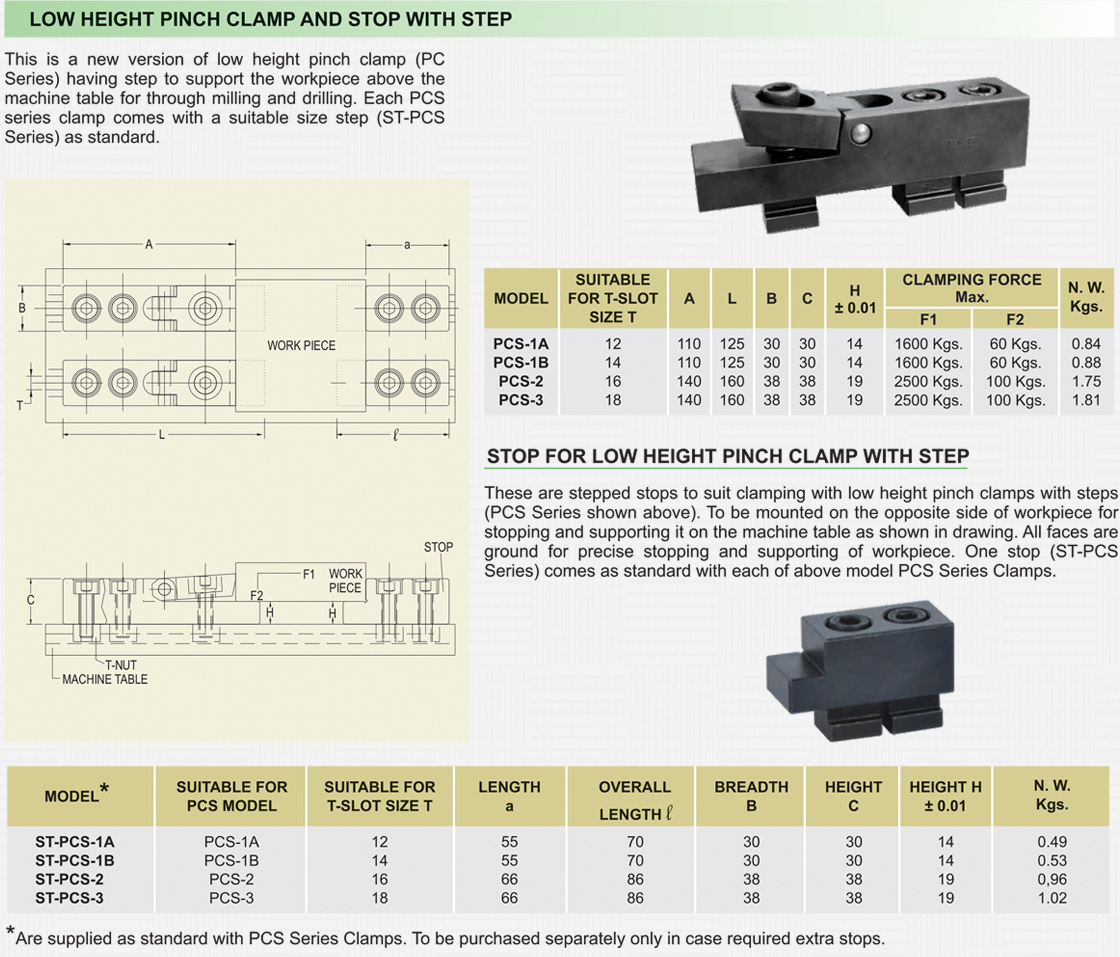

LOW HEIGHT PINCH CLAMP AND STOP WITH STEP

This is a new version of low height pinch clamp (PC Series) having step to support the workpiece above the machine table for through milling and drilling. Each PCS series clamp comes with a suitable size step (ST-PCS Series) as standard.

MODEL SUITABLE FOR T-SLOT
SIZE T
A L B C H
± 0.01
CLAMPING FORCE Max. N. W.
Kgs.
F1 F2
PCS-1A 12 110 125 30 30 14 1600 Kgs. 60 Kgs. 0.84
PCS-1B 14 110 125 30 30 14 1600 Kgs. 60 Kgs. 0.88
PCS-2 16 140 160 38 38 19 2500 Kgs. 100 Kgs. 1.75
PCS-3 18 140 160 38 38 19 2500 Kgs. 100 Kgs. 1.81


STOP FOR LOW HEIGHT PINCH CLAMP WITH STEP
These are stepped stops to suit clamping with low height pinch clamps with steps (PCS Series shown above). To be mounted on the opposite side of workpiece for stopping and supporting it on the machine table as shown in drawing. All faces are ground for precise stopping and supporting of workpiece. One stop (ST-PCS Series) comes as standard with each of above model PCS Series Clamps.

MODEL* SUITABLE FOR
PCS MODEL
SUITABLE FOR T-SLOT
SIZE T
LENGTH
a
OVERALL
LENGTH l
BREADTH
B
HEIGHT
C
HEIGHT H
± 0.01
N. W.
Kgs.
ST-PCS-1A PCS-1A 12 55 70 30 30 14 0.49
ST-PCS-1B PCS-1B 14 55 70 30 30 14 0.53
ST-PCS-2 PCS-2 16 66 86 38 38 19 0.96
ST-PCS-3 PCS-3 18 66 86 38 38 19 1.02
*Are supplied as standard with PCS Series Clamps. To be purchased separately only in case required extra stops.
