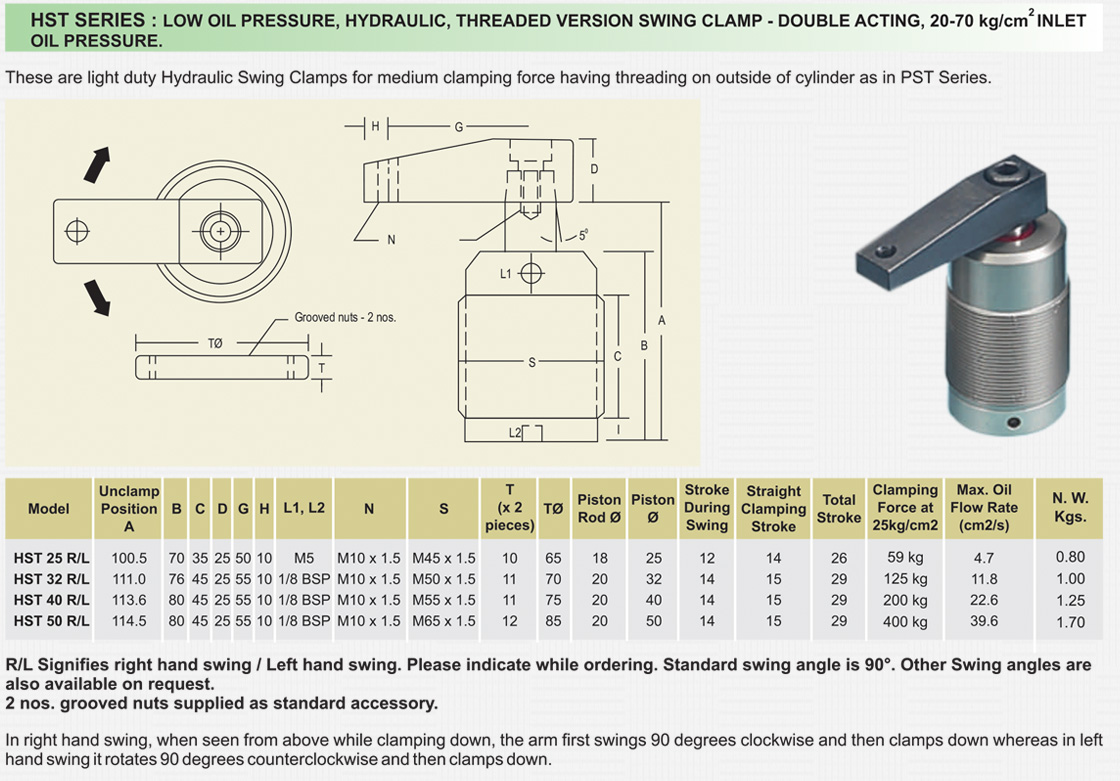

HST SERIES : LOW OIL PRESSURE, HYDRAULIC, THREADED VERSION SWING CLAMP - DOUBLE ACTING, 20-70 kg/cm2 INLET OIL PRESSURE.

These are light duty Hydraulic Swing Clamps for medium clamping force having threading on outside of cylinder as in PST Series.



R/L Signifies right hand swing / Left hand swing. Please indicate while ordering. Standard swing angle is 90°. Other Swing angles are also available on request.
2 nos. grooved nuts supplied as standard accessory.
In right hand swing, when seen from above while clamping down, the arm first swings 90 degrees clockwise and then clamps down whereas in left hand swing it rotates 90 degrees counterclockwise and then clamps down.

2D / 3D CAD Files Available on Request For All Models

MODEL Unclamp
Position
A
B C D G H L1, L2 N S T
(x 2
pieces)
Piston
Rod Ø
Piston
Ø
Stroke
During
Swing
Straight
Clamping
Stroke
Total
Stroke
Clamping
Force at
25kg/cm2
Max. Oil
Flow Rate
(cm2/s)
N. W.
Kgs
HST 25 R/L 100.5 70 35 25 50 10 M5 M10 x 1.5 M45 x 1.5 10 65 18 25 12 14 26 59 kg 4.7 0.80
HST 32 R/L 111.0 76 45 25 55 10 1/8 BSP M10 x 1.5 M50 x 1.5 11 70 20 32 14 15 29 125 kg 11.8 1.00
HST 40 R/L 113.6 80 45 25 55 10 1/8 BSP M10 x 1.5 M55 x 1.5 11 75 20 40 14 15 29 200 kg 22.6 1.25
HST 50 R/L 114.5 80 45 25 55 10 1/8 BSP M10 x 1.5 M65 x 1.5 12 85 20 50 14 15 29 400 kg 39.6 1.70
