HLC SERIES : DOUBLE ACTING, 5 - 50 kg/cm2 INLET OIL PRESSURE HYDRAULIC LEVER CLAMP



HLC Series Also Available in Manifold Type Mounting

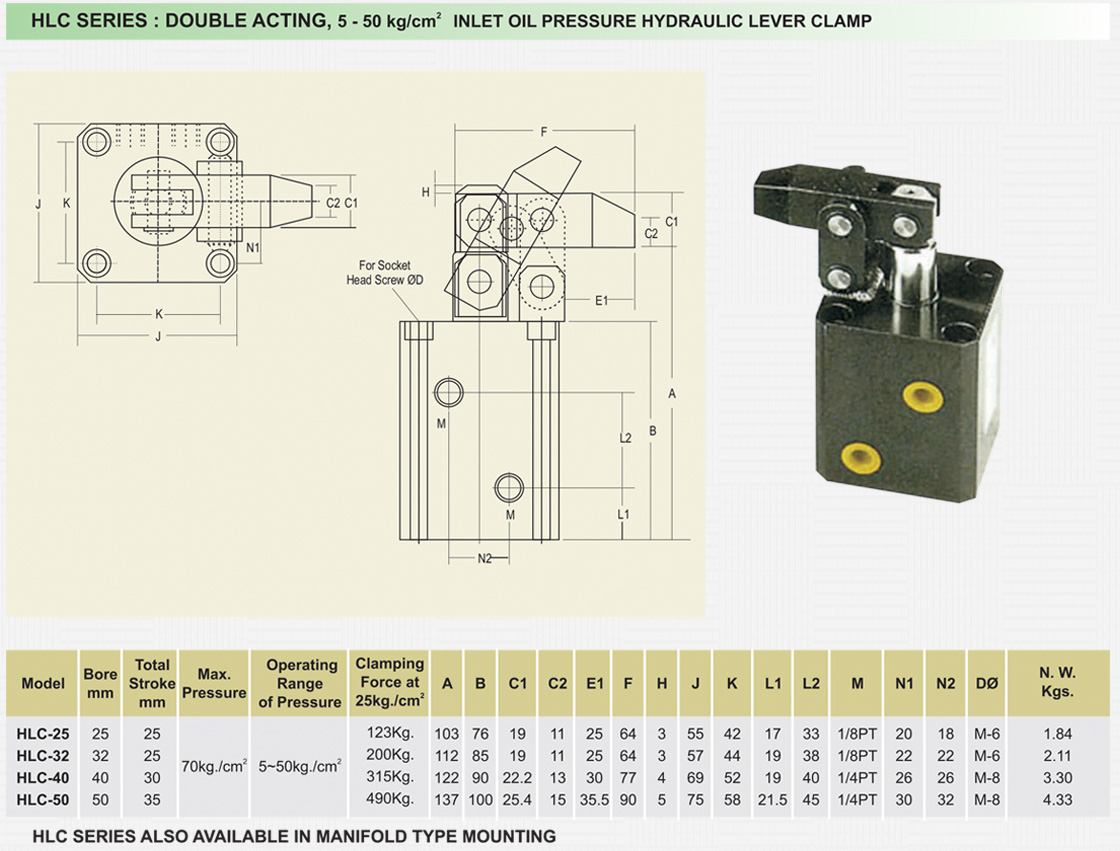

2D / 3D CAD Files Available on Request For All Models

MODEL Bore
mm
Total
Stroke
mm
Max.
Pressure
Operating
Range
of Pressure
Clamping
Force at
25kg./cm2
A B C1 C2 E1 F H J K L1 L2 M N1 N2 N. W.
Kgs
HLC-25 25 25 70kg./cm2 5~50kg./cm2 123Kg. 103 76 19 11 25 64 3 55 42 17 33 1/8PT 20 18 M-6 1.84
HLC-32 32 25 200Kg. 112 85 19 11 25 64 3 57 44 19 38 1/8PT 22 22 M-6 2.11
HLC-40 40 30 315Kg. 122 90 22.2 13 30 70 4 69 52 19 40 1/4PT 26 26 M-8 3.30
HLC-50 50 35 490Kg. 137 100 25.4 15 35.5 90 5 75 58 21.5 45 1/4PT 30 32 M-8 4.33
