HEAVY DUTY WELDABLE TOGGLE CLAMP - MODULAR DESIGN

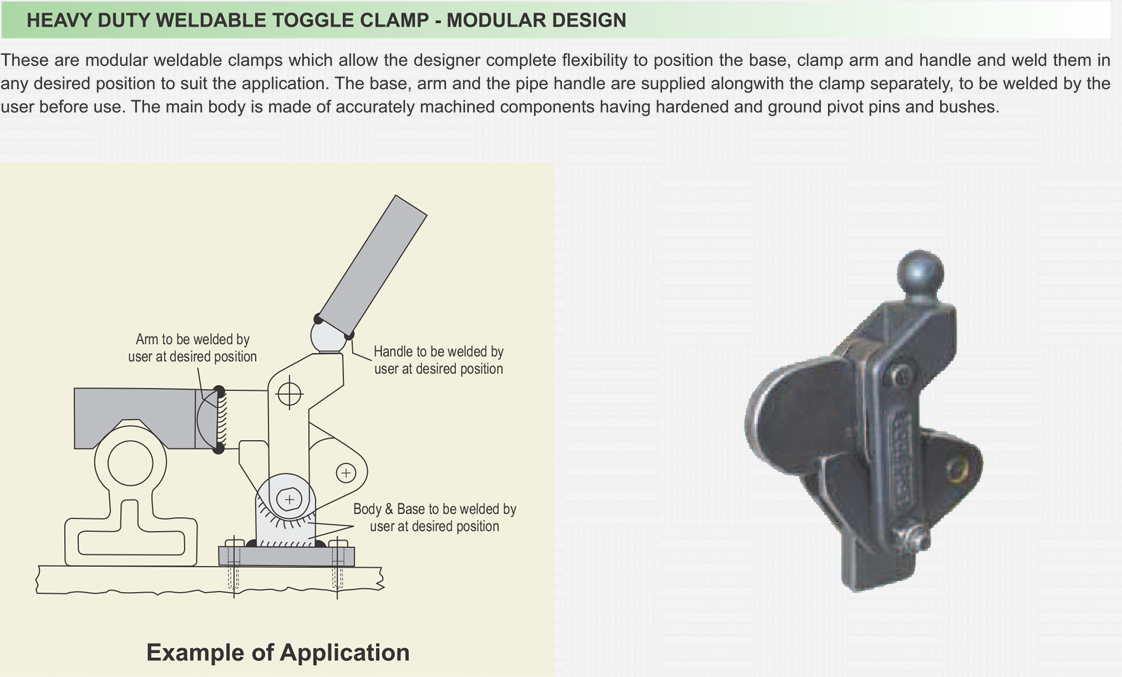

These are modular weldable clamps which allow the designer complete flexibility to position the base, clamp arm and handle and weld them in any desired position to suit the application. The base, arm and the pipe handle are supplied alongwith the clamp separately, to be welded by the user before use. The main body is made of accurately machined components having hardened and ground pivot pins and bushes.



2D / 3D CAD FILES AVAILABLE FOR ALL TOGGLE CLAMP MODELS ON REQUEST.

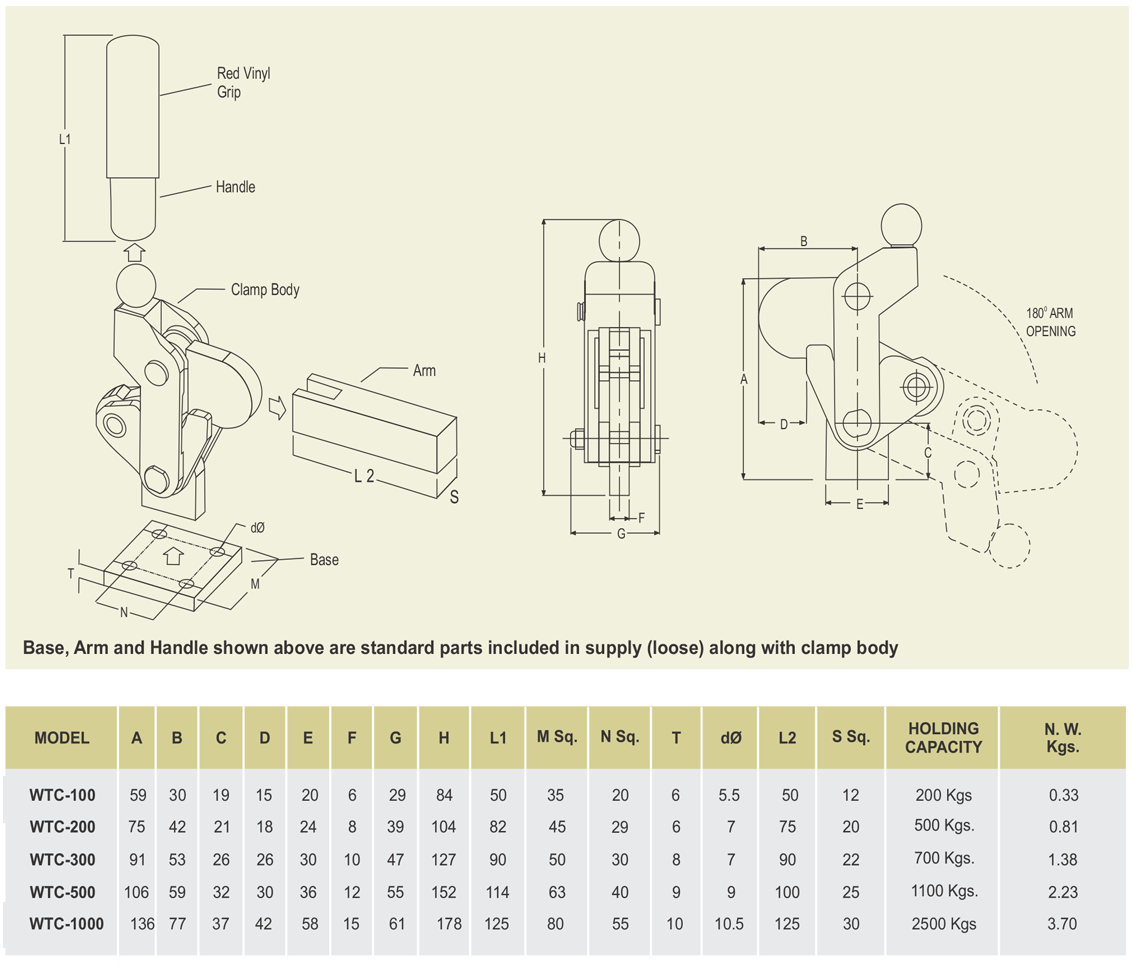

MODEL A B C D E F G H L1 M Sq. N Sq. T L2 S Sq. HOLDING
CAPACITY
N. W.
Kgs.
WTC-200 75 42 21 18 24 8 39 104 82 45 29 6 7 75 20 200 Kgs. 0.81
WTC-300 91 53 26 26 30 10 47 127 90 50 30 8 7 90 22 300 Kgs. 1.38
WTC-500 106 59 32 30 36 12 55 152 114 63 40 6 9 100 25 750 Kgs. 2.23
