HEAVY DUTY WELDABLE TOGGLE CLAMP - MODULAR DESIGN - BASE STRAIGHT

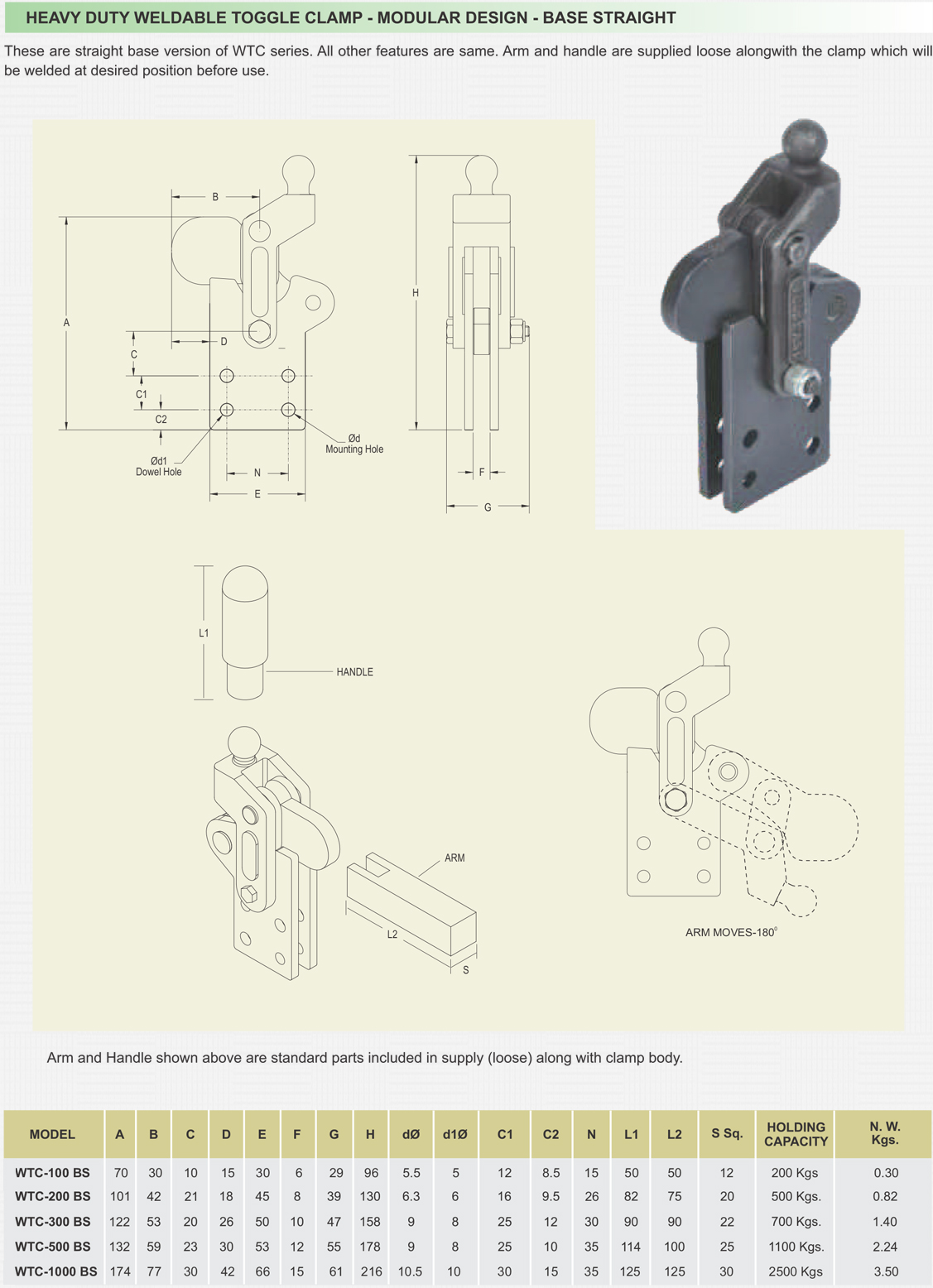

These are straight base version of WTC series. All other features are same. Arm and handle are supplied loose alongwith the clamp which will be welded at desired position before use.

Arm and Handle shown above are standard parts included in supply (loose) alongwith clamp body.

2D / 3D CAD FILES AVAILABLE FOR ALL TOGGLE CLAMP MODELS ON REQUEST.

MODEL A B C D E F G H d1Ø C1 C2 N L1 L2 S Sq. HOLDING
CAPACITY
N. W.
Kgs.
WTC-200 BS 101 42 21 18 45 8 39 130 6.3 6 16 9.5 29 82 75 20 200 Kgs. 0.82
WTC-300 BS 122 53 20 26 50 10 47 158 9 8 25 12 30 90 90 22 300 Kgs. 1.40
WTC-500 BS 132 59 23 30 53 12 55 178 9 8 25 10 35 114 100 25 750 Kgs. 2.24
