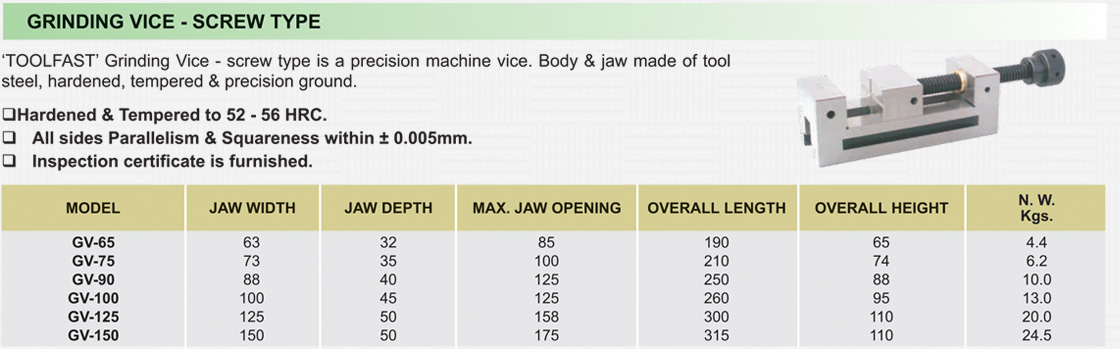

GRINDING VICE - SCREW TYPE

'TOOLFAST' Grinding Vice - screw type is a precision machine vice. Body & jaw made of tool steel, hardened, tempered & precision ground.

>> Hardened & Tempered to 52 - 56 HRC.
>> All sides Parallelism & Squareness within ± 0.005mm.
>> Inspection certificate is furnished.


MODEL JAW WIDTH JAW DEPTH MAX. JAW OPENING OVERALL LENGTH OVERALL HEIGHT N. W.
Kgs.
GV-65 63 32 85 190 65 4.4
GV-75 73 35 100 210 74 6.2
GV-90 88 40 125 250 88 10.0
GV-100 100 45 125 260 95 13.0
GV-100 125 50 158 300 110 20.0
GV-150 150 50 175 315 110 24.5
