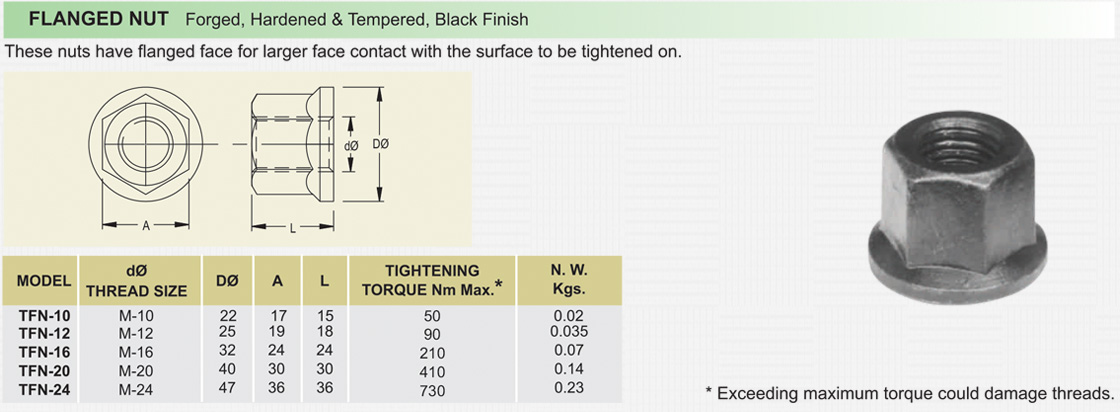

FLANGED NUT

Forged, Hardened & Tempered, Black Finish

These nuts have flanged face for larger face contact with the surface to be tightened on.

MODEL dØ THREAD SIZE A L TIGHTENING TORQUE Nm Mu. * N. W. Kgs.
TFN-10 M-10 22 17 15 50 0.02
TFN-12 M-12 25 19 18 90 0.035
TFN-16 M-16 32 24 24 220 0.07
TFN-20 M-20 40 30 30 420 0.14
TFN-24 M-24 47 36 36 730 0.23
*Exceeding maximum torque could damage threads
