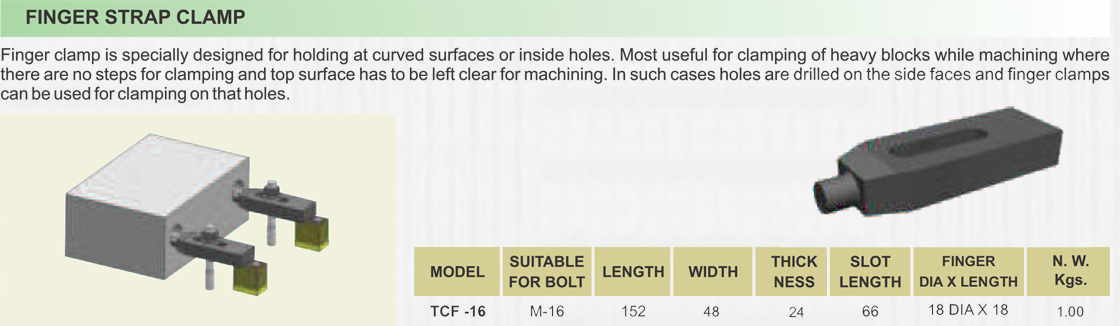

FINGER STRAP CLAMP

Forged Steel

Finger clamp is specially designed for holding at curved surfaces or inside holes. Most useful for clamping of heavy blocks while machining where there are no steps for clamping and top surface has to be left clear for machining. In such cases holes are drilled on the side faces and finger clamps can be used for clamping on that holes.


Model SUITABLE FOR BOLT LENGTH WIDTH THICKNESS SLOT
LENGTH
FINGER
DIA
N. W.
Kgs.
TCF -16 M-16 152 44 22 66 18 0.73
