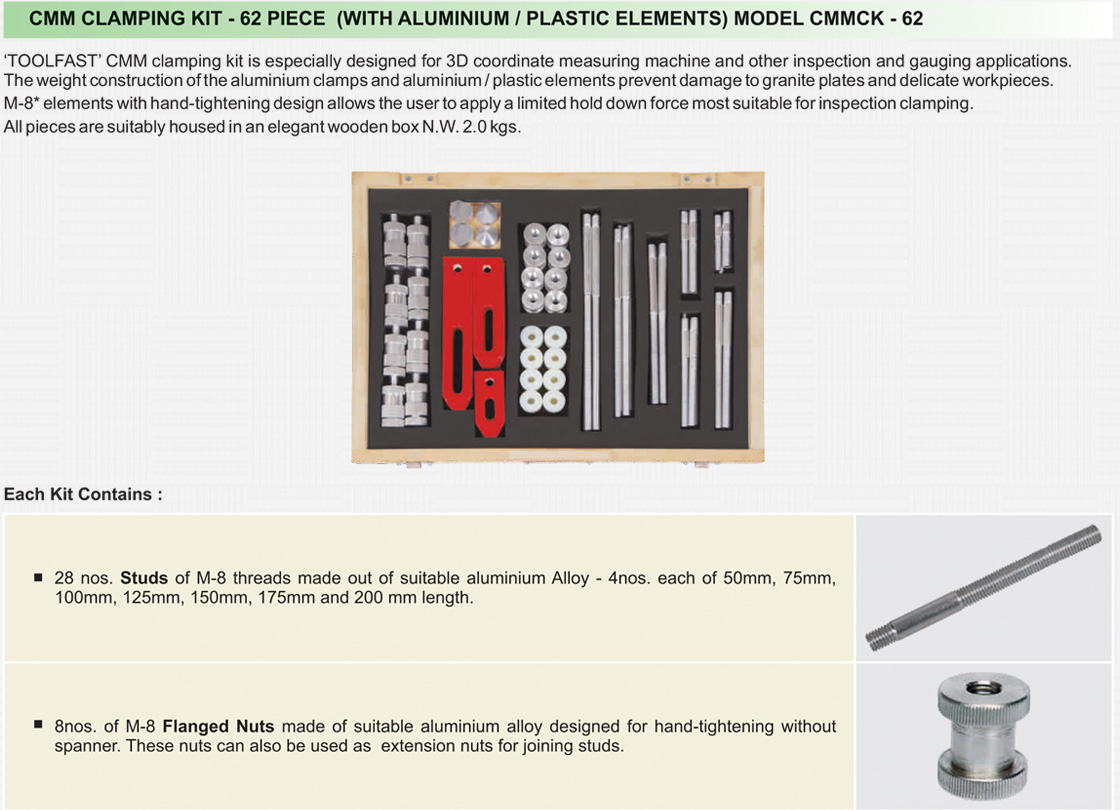

CMM CLAMPING KIT - 62 PIECE (WITH ALUMINIUM / PLASTIC ELEMENTS) MODEL CMMCK - 62

‘TOOLFAST’ CMM clamping kit is specially designed for 3D coordinate measuring machine and other inspection and gauging applications. The light weight construction of the aluminium clamps and aluminium / plastic elements prevent damage to granite plates and delicate workpieces. M-8 threaded* elements with hand-tightening design allows the user to apply a limited hold down force most suitable for inspection clamping.
All 62 pieces are suitably housed in an elegant wooden box N.W. 2.0 kgs.


Each Kit Contains :

  • 28 nos. Studs of M-8 threads made out of suitable aluminium Alloy - 4nos. each of 50mm, 75mm,
    100mm, 125mm, 150mm, 175mm and 200 mm length.
studs
  • 8nos. of M-8 Flanged Nuts made of suitable aluminium alloy designed for hand-tightening without spanner. These nuts can also be used as extension nuts for joining studs.
flanged nuts
  • 6nos. Strap Clamps suitable for M-8 studs made out of suitable aluminium alloy - 2nos. each of 60mm, 100mm and 140mm length.
strap clamps
  • 8nos. Aluminium Screw Jacks
    Closed Height = 38 mm
    Max open Height = 56 mm
    Top = Flat face having M-8 female thread
    Bottom = M-8 screw-in type for thread mounting on the granite plate of CMM.
screw jacks
  • 4nos. Aluminium Top Rest Pads for Screw Jacks
    2nos. with 'V' on top face and 2nos. having conical top face
top rest pads
  • 8nos. Plastic Bottom Rest Pads with M-8 blind hole for use as rest pads at the bottom of screw jacks
    when screw jacks have to be used directly on the granite surface as shown in picture (a) or for use as
    rest pads at the bottom of studs when the studs have to be used as threaded supports of strap
    clamps as shown in picture (b).
bottom rest pads

* FOR CMM BEDS WITH M-10 OR M-12 THREAD, ADAPTORS ARE AVAILABLE ON REQUEST TO ENABLE USE OF ABOVE CLAMPING KIT.
