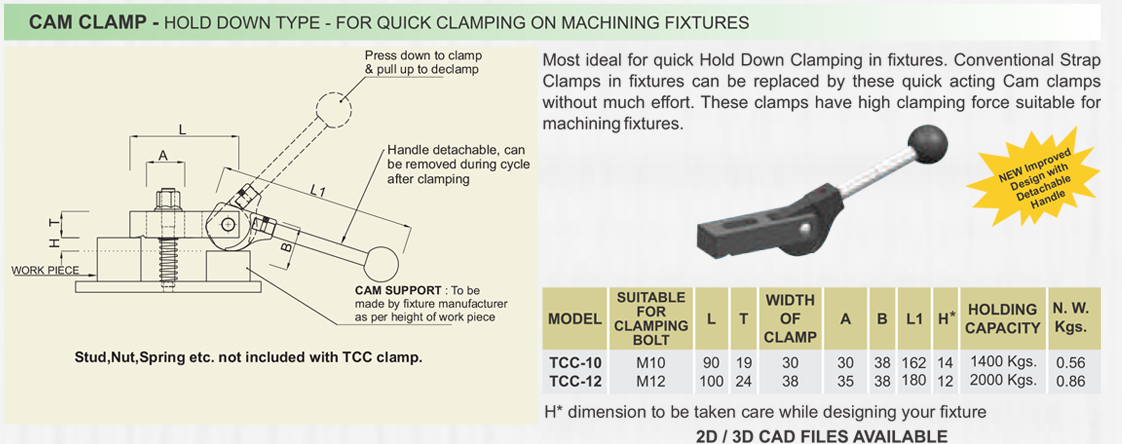

CAM CLAMP

HOLD DOWN lYPE- FOR QUICK CLAMPING ON MACHINING FIXTURES

Most ideal for quick Hold Down Clamping in fixtures. Conventional Strap Clamps in fixtures can be replaced by these quick acting Cam clamps without much effort. These clamps have high clamping force suitable for machining fixtures.


2D / 3D CAD Files Available.


MODEL SUITABLE FOR
CLAMPING BOLT
L T WIDTH OF
CLAMP
A B L1 H HOLDING
CAPACITY
N. W.
Kgs.
TCC-10 M10 90 19 30 30 38 180 14 1400 Kgs. 0.56
TCC-12 M12 100 24 38 35 38 180 12 2000 Kgs. 0.86
