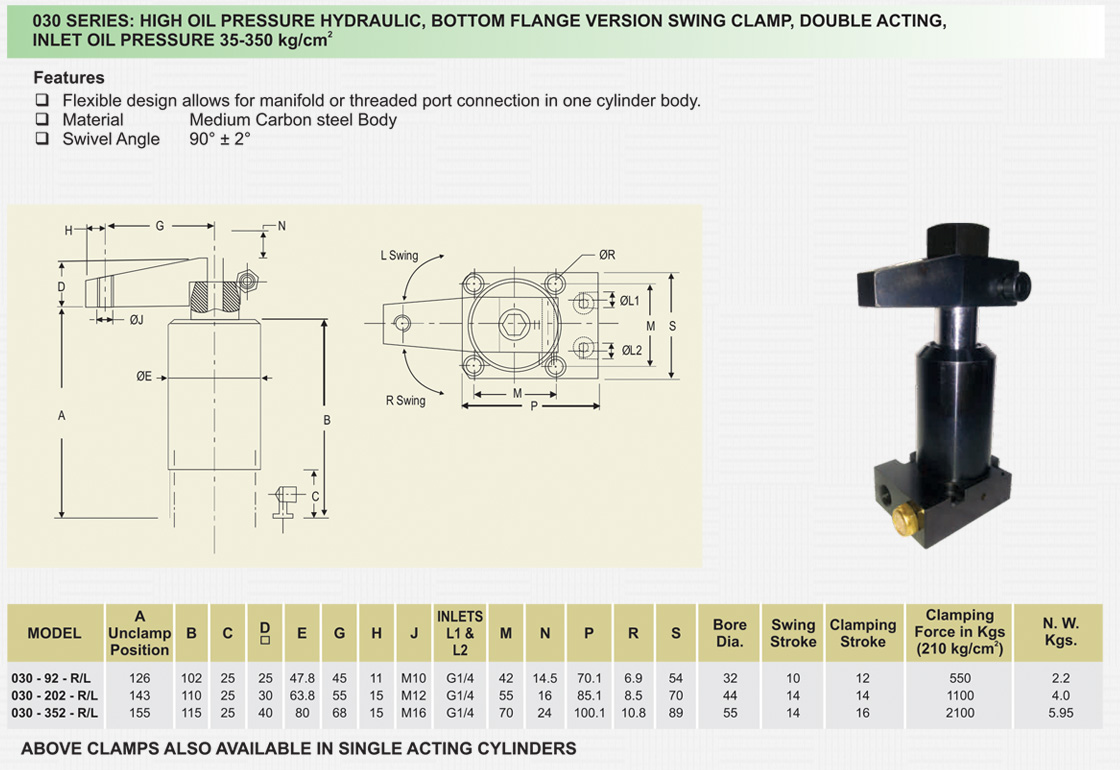

030 SERIES: HIGH OIL PRESSURE HYDRAULIC, BOTTOM FLANGE VERSION SWING CLAMP, DOUBLE ACTING, INLET OIL PRESSURE 35-350 kg/cm2

Features
>>Flexible design allows for manifold or threaded port connection in one cylinder body.
>>Material Medium Carbon steel Body
>>Swivel Angle 90° ± 2°


Above Clamps Also Available in Single Acting Cylinders

2D / 3D CAD Files Available on Request For All Models

MODEL A
Unclamp
Position
B C D E G H J INLETS
L1 &
L2
M N P R S Bore
Dia.
Swing
Stroke
Clamping
Stroke
Clamping
Force in Kgs
at(210 kg/cm2)
N. W.
Kgs
030 - 92 - R/L 126 102 25 25 47.8. 45 11 M10 G1/4 42 14.5 70.1 6.9 54 32 10 12 550 2.2
030 - 202 - R/L 143 110 25 30 63.8 55 15 M12 G1/4 55 16 85.1 8.5 70 44 14 14 1100 4.0
030 - 352 - R/L 155 115 25 40 80 68 15 M16 G1/4 70 24 100.1 10.8 89 55 14 16 2100 5.95
